J-Trace PRO

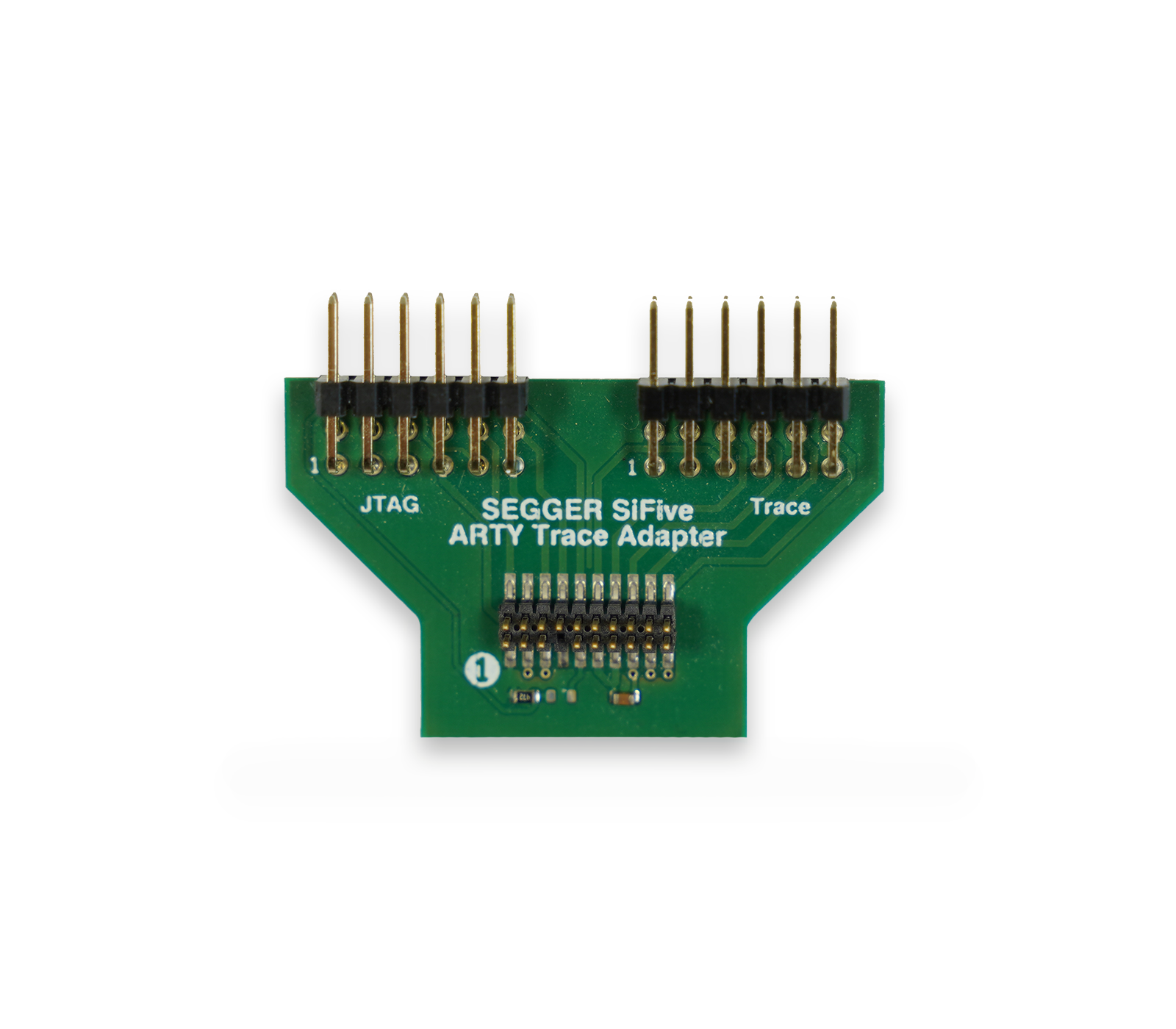

The SiFive-ARTY Trace Adapter allows debug and trace connections between the J-Trace PRO and the ARTY board running SiFive RISC-V core bitstreams.The ARTY board provides several identical headers where the JD header is used as the debug connector and JC header as the trace connector, when running SiFive RISC-V bitstreams on the ARTY board that have trace enabled.For additional product information, please visit segger.com.

The MIPI-60 Adapter allows JTAG connections between J-Link, J-Trace or Flasher and Jacinto7 TI target hardware systems. It provides a 19-pin JTAG/SWD and Trace connector, which allows TPIU tracing with up to 4 pins, and an Arm Standard 20-pin connector.For additional product information, please visit segger.com.

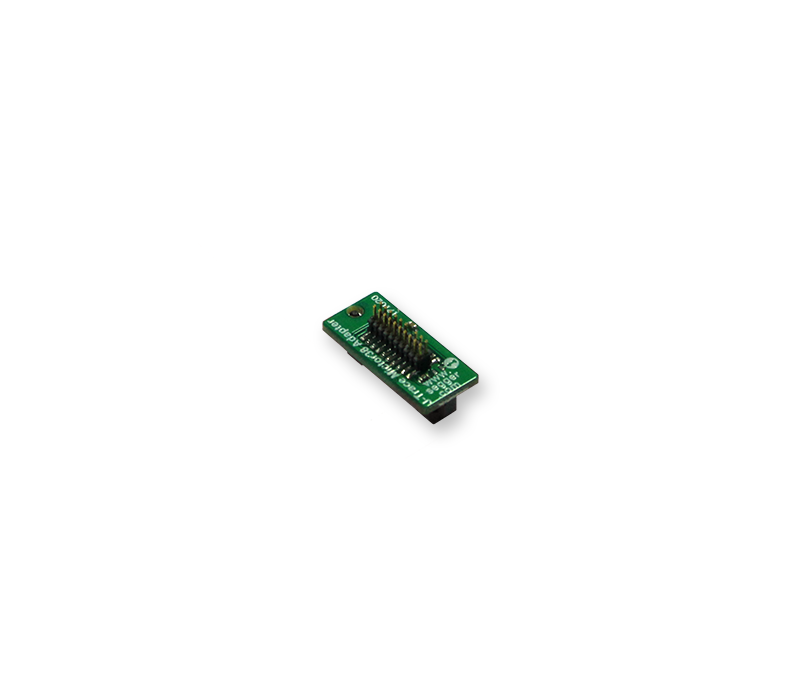

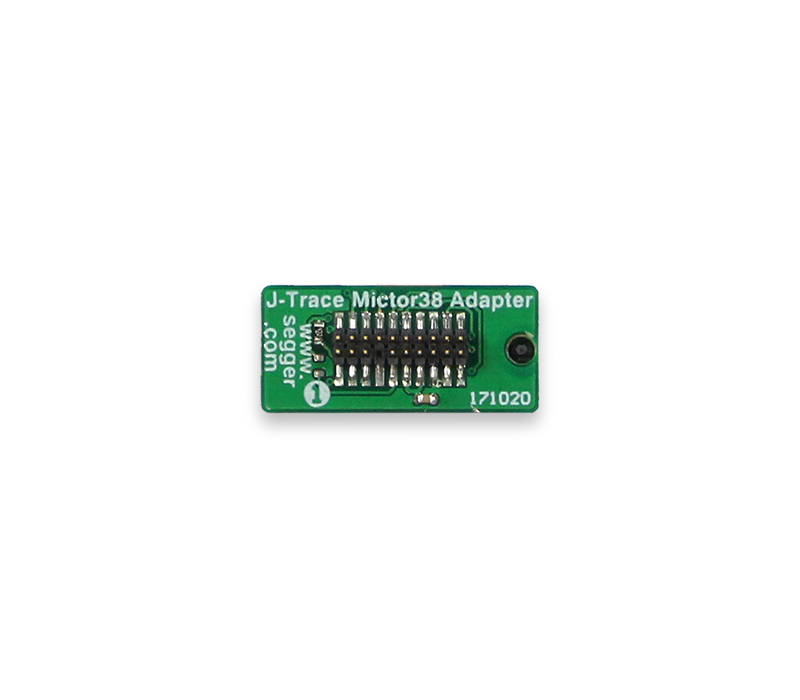

Adapts from 20-pin .05" Cortex trace connector to 38 pin Mictor connector.The pin out follows the single target connector pinout specification as defined in the ARM "ETM Architecture Specification".For additional product information, please visit segger.com.

J-Link USB connector to provide host side electrical isolation.For additional product information, please visit segger.com.

Standard .05" 19-pin Cortex-M connector to provide electrical isolation.For additional product information, please visit segger.com.

Get Embedded Studio PRO for Cortex-A/R, the All-In-One Embedded Development Environment (IDE) from SEGGER. Built especially for embedded developers, Embedded Studio PRO offers a complete embedded software suite which includes RTOS, GUI, USB-Device, USB-Host TCP/IP and a File System.Designed as a one-stop solution, this cutting-edge development solution boasts high performance with a very small footprint in RAM and ROM. Application development can be started immediately, and it can run out-of-the box on numerous popular evaluation boards. It is also royalty-free. Embedded Studio PRO for Cortex-A/R includes a license for Embedded Studio Cortex-ARM. Supported coresEmbedded Studio for Cortex-A/R supports any A/R microprocessor.Embedded Studio PRO is an all-in-one embedded development package. It contains:Embedded Studio (20.00.00)embOSemNet PRO IPv4/IPv6 Dual StackemCompress-PROemCompress-EmbedemCompress-ToGoemCrypt PROemFile PRO emModbus MasteremModbus SlaveemSecure-RSAemSecure-ECDSAemSSHemSSLemUSB-Device PROemUSB-Host PROemWin PROemPower evaluation board (6.30.00)IoT Toolkit J-Link PLUS (8.08.28)19-Pin Cortex-M Adapter (8.06.00)Commercial Use License (CUL) - Single User License 12 months free updates/supportFor additional product information, please visit segger.com.

Get Embedded Studio PRO for Cortex-M and benefit from an all-in-one embedded development package from SEGGER. This powerful IDE (integrated development environment), developers can enjoy extensive support for the most widely used microcontrollers as well as a complete embedded software suite and the industry-leading J-Link PLUS debug probe.Thanks to Embedded Studio PRO for Cortex-M, creating full-featured firmware for new products has gotten a lot easier. All the needs of embedded developers are covered – at an unbeatable price. Embedded Studio PRO for Cortex-M is topped off by SEGGER’s market-leading debug probe, the emPower Evauation Board and professional development support from the Embedded Experts.Supported coresWith one setup Embedded Studio supports development foremost commonly used microcontroller, including Cortex-M0, Cortex-M0+, Cortex-M1, Cortex-M3, Cortex-M4, Cortex-M7, Cortex-M23 and Cortex-M33.Embedded Studio PRO is an all-in-one embedded development package. It contains:Embedded Studio (20.00.23)embOSemNet PRO IPv4/IPv6 Dual StackemCompress-PROemCompress-EmbedemCompress-ToGoemCrypt PROemFile PROemModbus MasteremModbus SlaveemSecure-RSAemSecure-ECDSAemSSHemSSLemUSB-Device PROemUSB-Host PROemWin PROemPower evaluation board (6.30.00)IoT ToolkitJ-Link PLUS (8.08.28)19-Pin Cortex-M Adapter (8.06.00)Commercial Use License (CUL) - Single User License – 12 months free updates/supportFor additional product information, please visit segger.com.

Get Embedded Studio for RISC-V, the development environment for devices that are based on open RISC-V architecture. Whether using an available device or one's own chips, Embedded Studio provides the complete solution to developing and debugging an application.A full-featured version of Embedded Studio specifically for RISC-V, users can avail of a complete development solution. This includes a toolchain, optimized run-time library, a core simulator, and hardware debugging with J-Link debug probes for any device based on RISC-V.Supported coresWhen it comes to support, Embedded Studio for RISC-V provides it for these core variants: RV32I, RV32IMA, RV32IMAC, RV32IMAF, RV32IMAFC, RV32G, RV32GC, RV32E, RV32EMA, RV32EMAC, RV64I, RV64E and RV64GC.Use a different core? Not to worry – feel free to contact us.Full development tool-chain for RISC-V targets including: Powerful debugger Seamless J-Link integration Multi-threaded build process Commercial Use License (CUL) - Single User License 12 months free updates/supportFor additional product information, please visit segger.com.

Get Embedded Studio for Cortex-M microcontrollers, the Cortex-M edition of SEGGER’s all-in-one development environment. Whether it be a small IoT-enabled wearable or a larger and more complex industrial design, Embedded Studio provides extensive CPU support and powerful development features. Embedded Studio for Cortex-M is the full-featured licensing option of Embedded Studio. Supported coresWith one setup Embedded Studio supports development for most commonly used microcontroller, including Cortex-M0, Cortex-M0+, Cortex-M1, Cortex-M3, Cortex-M4, Cortex-M7, Cortex-M23 and Cortex-M33. Full development tool-chain for Cortex-M-based targets including: Powerful debugger Seamless J-Link integration Multi-threaded build process Commercial Use License (CUL) - Single User 12 months free updates/support For additional product information, please visit segger.com.

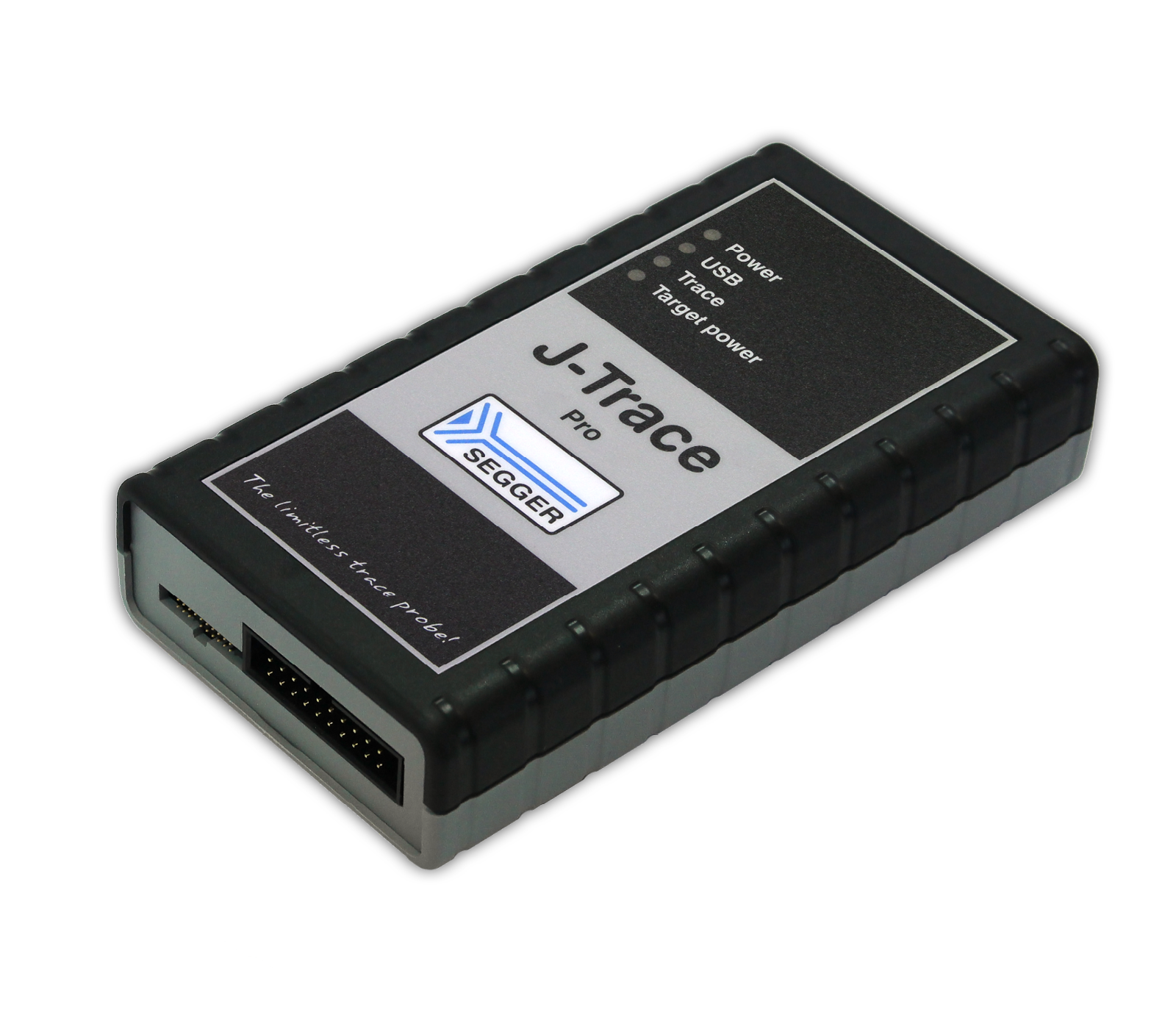

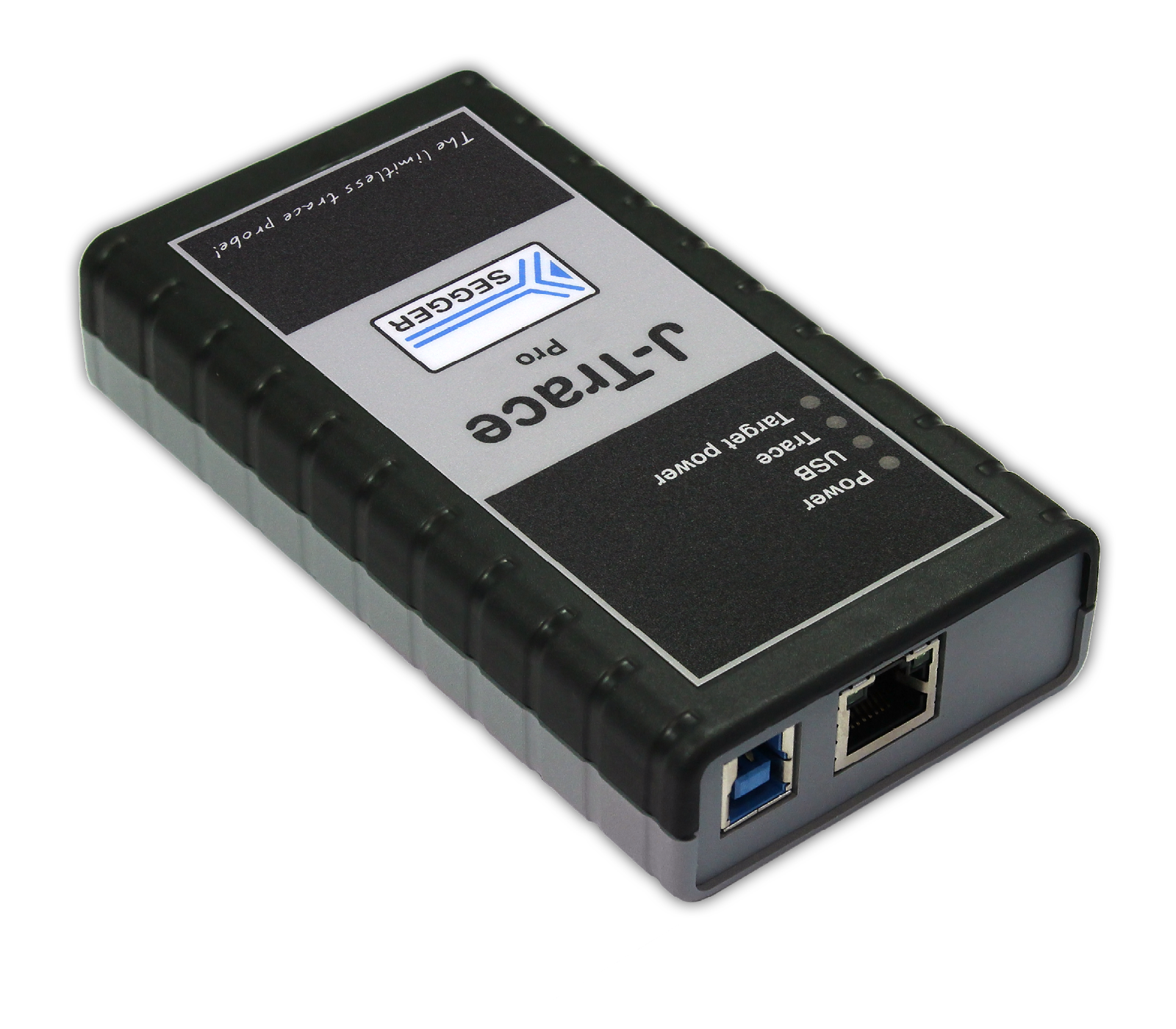

Get the J-Trace PRO Cortex, the superspeed trace probe that provides support for Cortex-A/R/M-based microcontrollers and microprocessors. With its superspeed USB 3.0 interface, J-Trace PRO Cortex enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for RISC-V devices, 64 MB on-board trace buffer. Up to 4.0 MB/s download speed Includes: Streaming trace probe with USB Superspeed interface Real-time streaming at full system clock Tune your application with live profiling Satisfy regulatory requirements with instruction-level code coverage Isolate and Identify hard-to-find code defects with unlimited trace Supports streaming trace Supports Cortex-A/R/M targets Full J-Link debug functionality Further advantagesIt also supports extended trace features, such as code coverage (so engineers have visibility over which parts of the application code have been executed) and execution profiling (providing visibility as to which instructions have been executed and how often—so hotspots can be addressed and optimization opportunities identified).Package content J-Trace PRO trace probe Cortex-M Trace Reference Board .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Mini USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

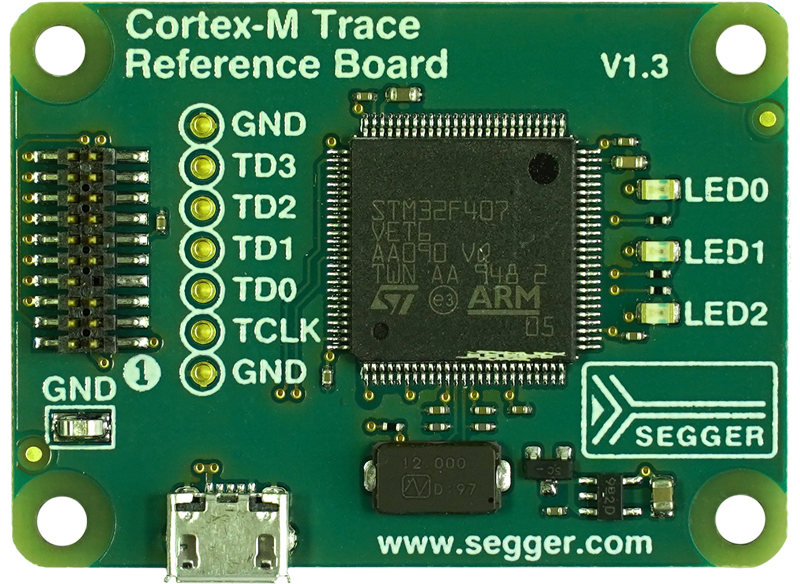

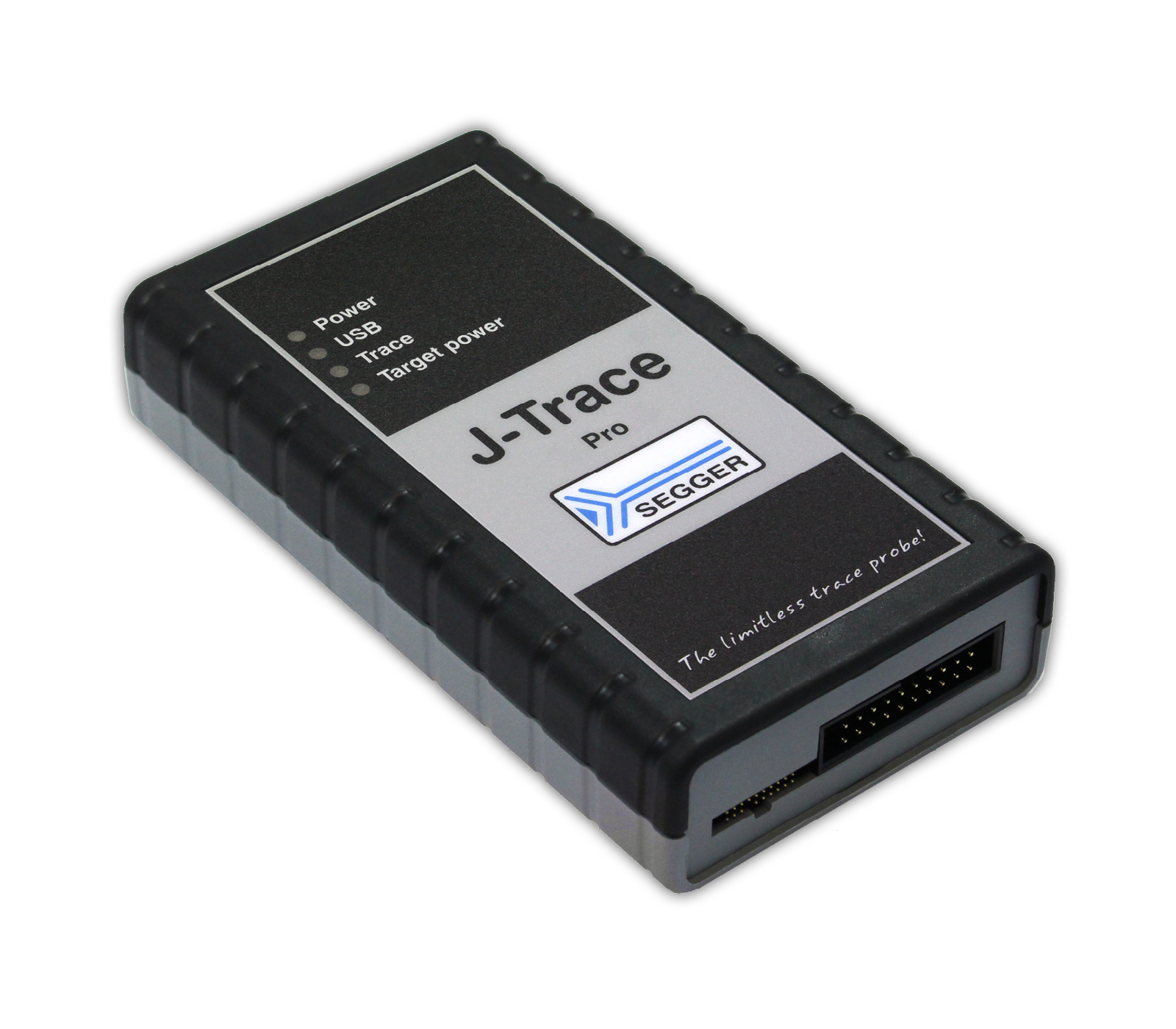

Get the J-Trace PRO for Cortex-M, the leading trace probe that is setting a new standard for trace probes. Thanks to its advanced capabilities, it enables continuous streaming trace and lifts the limitations by internal buffers, slowing data transmission to provide those valuable insights that let developer optimize code.J-Trace PRO captures complete trace over long periods, allowing the recording of bugs that are infrequent and hard to reproduce. This is especially helpful when the program flow “runs off the rails” and stops in a fault state.Up to 4.0 MB/s download speed Further advantagesThe J-Trace PRO Cortex-M supports extended trace features: Code coverage (visibility over which parts of the code have been executed) and execution profiling (visibility as to which instructions have been executed & how often). Package content J-Trace PRO trace probe Cortex-M Trace Reference Board .05" 20-pin debug & trace cable 1" 20-pin ribbon cable (18 cm) Mini USB cable USB 3.0 cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Trace PRO RISC-V, the superspeed trace probe that provides support for RISC-V-based microcontrollers. With its superspeed USB 3.0 interface, J-Trace PRO RISC-V enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for RISC-V devices, 64 MB on-board trace buffer. Up to 4.0 MB/s download speedIncludes: J-Flash / J-Flash SPI J-Link Unlimited Flash Breakpoints Ozone - The J-Link Debugger Monitor mode Further advantagesIt also supports extended trace features, such as code coverage (so engineers have visibility over which parts of the application code have been executed) and execution profiling (providing visibility as to which instructions have been executed and how often—so hotspots can be addressed and optimization opportunities identified). Package content J-Trace PRO trace probe .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, please visit segger.com.
