MIPI-60 Adapter

Get the J-Link Pro PoE, the specialized high-end debug probe for test farms J-Link Pro PoE features a PoE-enabled Ethernet interface as an alternative to the USB connection, specifically to reduce the size of a cable harness in test farms. A USB port on the target side simplifies switching power of the target boards. Easily check hardware status thanks to two additional LEDs. Connects via Ethernet or USB to the host. Cross-platform, it runs on Windows, Linux, and macOS. Further advantagesJ-Link Pro PoE includes a web interface (web server) for easy TCP/IP configuration and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & Flash. There is also built-in VCOM functionality, supporting a broad range of CPUs and microcontrollers.J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. Package content J-Link Pro PoE debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, please visit segger.com.

Get the  J-Link Pro, an ultra fast debug probe using Ethernet for communication with the development system. Working “out-of-the-box”, it uses DHCP per default. The debug probe can be used far away from the development system, either over a hardwired or wireless network. Easily check hardware status thanks to two additional LEDs. Connects via Ethernet or USB to the host. Cross-platform, it runs on Windows, Linux & macOS. Further advantagesJ-Link Pro includes a web interface (web server) for easy TCP/IP configuration and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & J-Flash. There is also built-in VCOM functionality, supporting a broad range of CPUs and microcontrollers. J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. Package content J-Link Pro debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Link Ultra, an ultra-fast debug probe for JTAG/SWD and superset of J-Link PLUS. 100% compatible with J-Link PLUS – and even faster! Make the switch and enjoy faster download speeds of up to 4 Mbyte/s. Comes with integrated licenses for: Unlimited breakpoints in flash memory, Ozone & J-Flash Free software updates Also includes: ARM Remote Debug Interface (RDI), remote GDB server for the GNU Project Debugger (GDB Server), Flash Loaders, and software to program internal and external flash of your microcontroller (J-Flash).J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. Further advantagesJ-Link Ultra comes built-in VCOM functionality. Supports direct download into flash memory & RAM. Includes a broad range of supported CPUs and microcontrollers. No power supply needed; driven and powered by USB. Package content J-Link Ultra debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Link WiFi, a debug probe with WiFi interface. Communicates at high speed (up to 15MHz) with supported target CPUs. Need a wireless debug interface? Then J-Link WiFi is the perfect solution – for example if the target is moving or needs to be shielded from the environment. Powered by USB, it can easily connect to the same source of power as the target device. J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. With over 500,000 J-Link shipped so far, it is probably the most popular debug probe for ARM cores and the de-facto standard. Further advantagesJ-Link WiFi includes a web interface making for easy TCP/IP configuration (built-in webserver). There are also integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI, and J-Flash. It additionally provides J-Link debugging for mobile applications as well as built-in VCOM functionality, supporting a broad range of microcontrollers & CPUs.Package content J-Link WiFi debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Link PLUS, a high-speed JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, communicates at high speed with supported target CPUs. Supports a large number of CPU cores and microcontrollers.All major IDEs including Eclipse & GDB-based IDEs support J-Link debug probes. So does SEGGER Embedded Studio. With 500,00 J-Links shipped so far, it is the most popular debug probe for ARM cores and the de-facto standard.Further advantagesJ-Link PLUS has built-in VCOM functionality, with integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & J-Flash. Direct download into RAM & flash memory is also supported. It is available in two form factors: J-Link PLUS & J-Link PLUS Compact (functions identical). Package content J-Link PLUS debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product infromation, please visit segger.com.

Get the J-Link PLUS Compact debug probe; a compact version of the J-Link PLUS. Mounts securely & unobtrusively into development and end user equipment. Based on 32-bit RISC CPU, it communicates at high speed with supported target CPUs. Thanks to a small size with two mounting holes, it can be placed into existing equipment housings. Space can also be reserved for direct-to-PCB mounting. J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. More than 500,000 J-Links have been shipped so far, making this probably the most popular debug probe on the market for ARM cores and the de-facto standard.Further advantagesThe J-Link PLUS Compact has a built-in VCOM functionality and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI, and J-Flash. It supports direct download into RAM and flash memory. It has a broad range of supported microcontrollers and CPUs.Package content J-Link PLUS Compact debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, please visit segger.com.

Get the J-Link BASE – the BASE version of the market leading J-Link debug probe family. The top models of the J-Link family are J-Link Pro PoE, J-Link Pro, ULTRA+ & PLUS. The J-Link Base is the perfect level for the average developer to jump into the wide world of J-Link. It offers a respectable download speed of 1 MB/s. It is powered by USB, and supports a wide range of CPU cores and microcontrollers. Known for its reliability and speed, it is used worldwide for firmware development.J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs,  and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.Further advantagesJ-Link BASE has built-in VCOM functionality. It is also available in a compact version: the J-Link BASE Compact.Including all models, more than 500,000 J-Links have been shipped so far, making J-Link probably the most popular debug probe for ARM cores and the de-facto standard. Package content J-Link Base debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Link BASE Compact – the BASE version of the market leading J-Link debug probe family. The top models of the J-Link family are J-Link Pro PoE, J-Link Pro, ULTRA+ & PLUS. The J-Link BASE Compact is designed to mount securely and unobtrusively into development or end user equipment. Small in size and with two mounting holes, this means J-Link BASE Compact can be placed into existing equipment housings or reserve space for direct-to-PCB mounting.The J-Link Base is the perfect level for the average developer to jump into the wide world of J-Link. It offers a respectable download speed of 1 MB/s. It is powered by USB, and supports a wide range of CPU cores and microcontrollers. Known for its reliability and speed, it is used worldwide for firmware development.J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.J-Link BASE is also available in the classic form factor. Including all models, more than 500,000 J-Links have been shipped so far, making J-Link probably the most popular debug probe for ARM cores and the de-facto standard.Further advantagesJ-Link BASE Compact has built-in VCOM functionality.J-Link BASE is available in two form factors with identical function: J-Link BASE and J-Link BASE Compact.Package content J-Link BASE Compact debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Trace PRO, the superspeed trace probe that is designed to support the advanced tracing features of all popular cores and architectures. With its superspeed USB 3.0 interface, J-Trace PRO enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code. With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for Cortex-M, Cortex-R, Cortex-A, and RISC-V devices, 64 MB on-board trace buffer Up to 4.0 MB/s download speedThe J-Trace PRO software package includes: J-Flash / J-Flash SPI J-Link Unlimited Flash Breakpoints Ozone - The J-Link Debugger Monitor mode J-Link ARM RDI / RDDI Package content Cortex-M Trace Reference Board .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Micro USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, pleace visit segger.com.

Get the J-Trace PRO Cortex, the superspeed trace probe that provides support for Cortex-A/R/M-based microcontrollers and microprocessors. With its superspeed USB 3.0 interface, J-Trace PRO Cortex enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for RISC-V devices, 64 MB on-board trace buffer. Up to 4.0 MB/s download speed Includes: Streaming trace probe with USB Superspeed interface Real-time streaming at full system clock Tune your application with live profiling Satisfy regulatory requirements with instruction-level code coverage Isolate and Identify hard-to-find code defects with unlimited trace Supports streaming trace Supports Cortex-A/R/M targets Full J-Link debug functionality Further advantagesIt also supports extended trace features, such as code coverage (so engineers have visibility over which parts of the application code have been executed) and execution profiling (providing visibility as to which instructions have been executed and how often—so hotspots can be addressed and optimization opportunities identified).Package content J-Trace PRO trace probe Cortex-M Trace Reference Board .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Mini USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Trace PRO for Cortex-M, the leading trace probe that is setting a new standard for trace probes. Thanks to its advanced capabilities, it enables continuous streaming trace and lifts the limitations by internal buffers, slowing data transmission to provide those valuable insights that let developer optimize code.J-Trace PRO captures complete trace over long periods, allowing the recording of bugs that are infrequent and hard to reproduce. This is especially helpful when the program flow “runs off the rails” and stops in a fault state.Up to 4.0 MB/s download speed Further advantagesThe J-Trace PRO Cortex-M supports extended trace features: Code coverage (visibility over which parts of the code have been executed) and execution profiling (visibility as to which instructions have been executed & how often). Package content J-Trace PRO trace probe Cortex-M Trace Reference Board .05" 20-pin debug & trace cable 1" 20-pin ribbon cable (18 cm) Mini USB cable USB 3.0 cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Trace PRO RISC-V, the superspeed trace probe that provides support for RISC-V-based microcontrollers. With its superspeed USB 3.0 interface, J-Trace PRO RISC-V enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for RISC-V devices, 64 MB on-board trace buffer. Up to 4.0 MB/s download speedIncludes: J-Flash / J-Flash SPI J-Link Unlimited Flash Breakpoints Ozone - The J-Link Debugger Monitor mode Further advantagesIt also supports extended trace features, such as code coverage (so engineers have visibility over which parts of the application code have been executed) and execution profiling (providing visibility as to which instructions have been executed and how often—so hotspots can be addressed and optimization opportunities identified). Package content J-Trace PRO trace probe .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, please visit segger.com.

Adapts from 20-pin .05" Cortex trace connector to 38 pin Mictor connector.The pin out follows the single target connector pinout specification as defined in the ARM "ETM Architecture Specification".For additional product information, please visit segger.com.

Adapts from .1" 20-pin Standard connector to 14-pin TI connector incl. 14-pin cableFor additional product information, please visit segger.com.

Adapts from 20-pin, 0.1 inch Standard connector to 14-pin, PPC connector incl. 14-pin cableAdditional Product Information on segger.com

Adapts from the standard J-Link 20-pin 0.1" target connector to Microchip RJ11 modular debug connector. Incl. 6-pin RJ11 modular connector cable.For additional product information, please visit segger.com.

Adapts from the standard J-Link 20-pin 0.1" target connector to Xilinx 14 pin 2 mm connector (comp. Platform Cable USB II).Incl. 14 pin 1 mm ribbon cableFor additional product information, please visit segger.com.

The SEGGER SiFive-ARTY Adapter allows debug connections between J-Link and the ARTY board running SiFive RISC-V core bitstreams. The ARTY board provides several identical headers where the JD header is used as the debug connector, when running SiFive RISC-V bitstreams on the ARTY board.For additional product information, please visit segger.com.

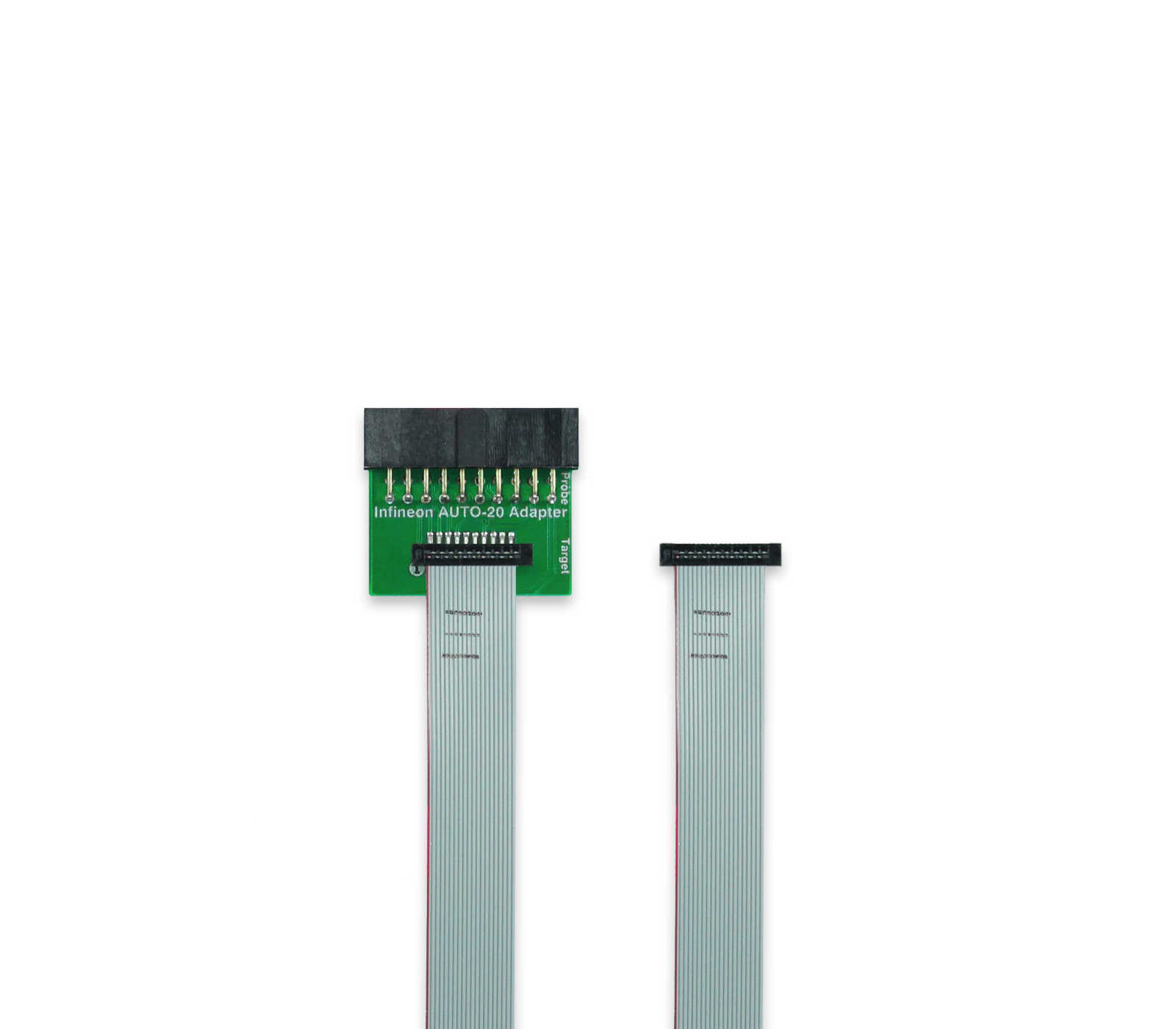

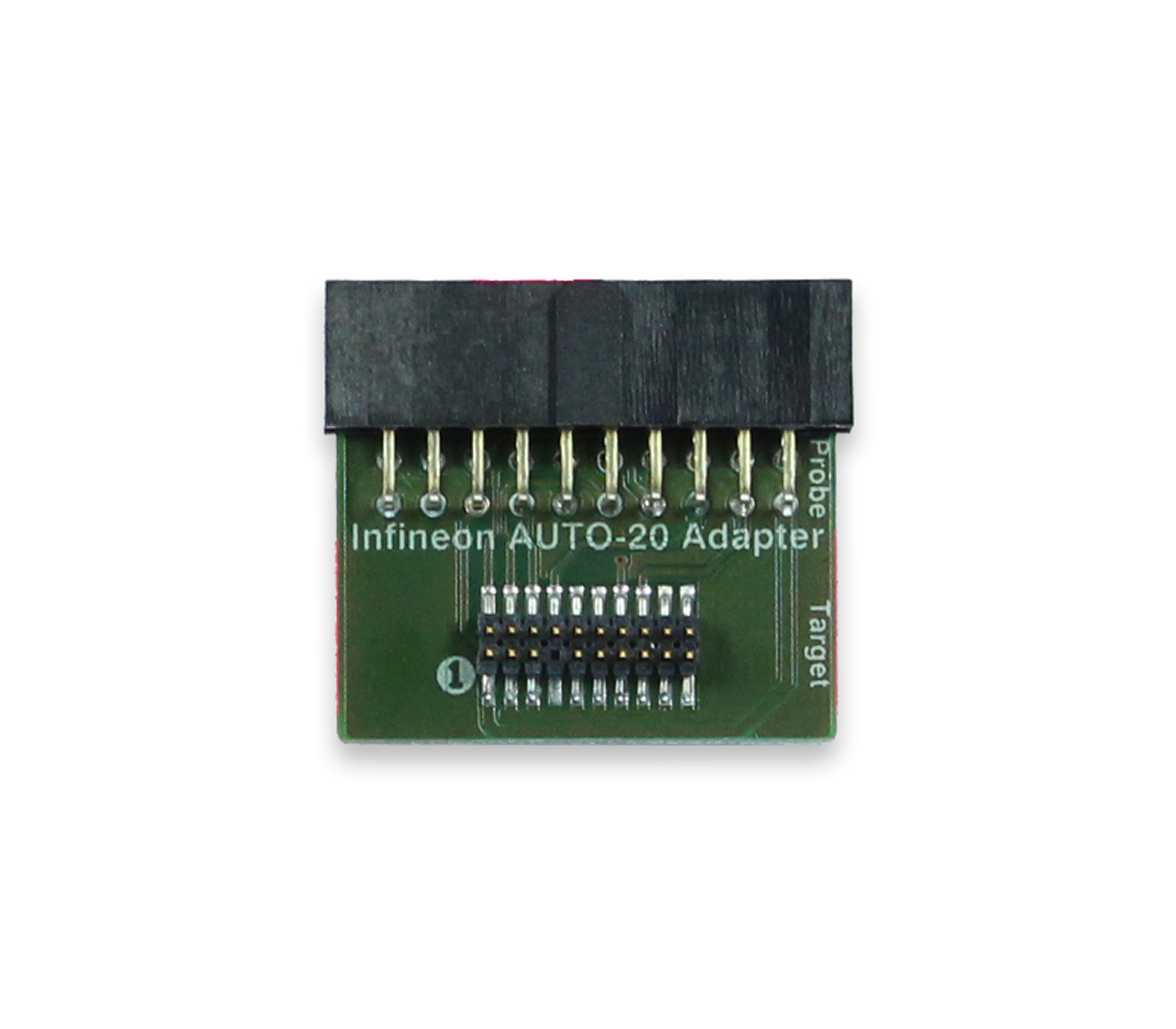

The SEGGER Infineon AUTO-20 Adapter allows a JTAG connection to a target hardware system, which has an Automotive Connector. It adapts from the 20-pin 0.1'' JTAG connector to a 19-pin 0.05'' Samtec FTSH connector.The SEGGER Infineon AUTO-20 Adapter can be used to connect the Flasher to Infineon AURIX™ -TC3xx microcontrollers. It may also be used to connect the Flasher to a different target as far as the target connector uses the same pinout as shown.For additional product information, please visit segger.com.

The SiFive-ARTY Trace Adapter allows debug and trace connections between the J-Trace PRO and the ARTY board running SiFive RISC-V core bitstreams.The ARTY board provides several identical headers where the JD header is used as the debug connector and JC header as the trace connector, when running SiFive RISC-V bitstreams on the ARTY board that have trace enabled.For additional product information, please visit segger.com.

Adapts from .1" 20-pin Standard connector to 14-pin RX600 JTAG connector incl. .1" 14-pin cableFor additional product information, please visit segger.com.

Adapts from the standard J-Link 20-pin 0.1" target connector to TI CTI-20 connector. For additional product information, please visit segger.com.

Adapts from the standard J-Link 20-pin 0.1" target connector to Mictor 38-Pin connector.For additional product information, please visit segger.com.

Adapts from 20-pin, 0.1‘‘ standard J-Link connector to 14-pin, 0.1" RX FINE connector. Incl. 14-pin cable.For additional product information, please visit segger.com.

Adapts from the standard J-Link 20-pin 0.1" target connector to Renesas 14-pin E1 connectorFor additional product information, please visit segger.com.
