USB Isolator

Get the  J-Link Pro, an ultra fast debug probe using Ethernet for communication with the development system. Working “out-of-the-box”, it uses DHCP per default. The debug probe can be used far away from the development system, either over a hardwired or wireless network. Easily check hardware status thanks to two additional LEDs. Connects via Ethernet or USB to the host. Cross-platform, it runs on Windows, Linux & macOS. Further advantagesJ-Link Pro includes a web interface (web server) for easy TCP/IP configuration and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & J-Flash. There is also built-in VCOM functionality, supporting a broad range of CPUs and microcontrollers. J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. Package content J-Link Pro debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Link Ultra, an ultra-fast debug probe for JTAG/SWD and superset of J-Link PLUS. 100% compatible with J-Link PLUS – and even faster! Make the switch and enjoy faster download speeds of up to 4 Mbyte/s. Comes with integrated licenses for: Unlimited breakpoints in flash memory, Ozone & J-Flash Free software updates Also includes: ARM Remote Debug Interface (RDI), remote GDB server for the GNU Project Debugger (GDB Server), Flash Loaders, and software to program internal and external flash of your microcontroller (J-Flash).J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. Further advantagesJ-Link Ultra comes built-in VCOM functionality. Supports direct download into flash memory & RAM. Includes a broad range of supported CPUs and microcontrollers. No power supply needed; driven and powered by USB. Package content J-Link Ultra debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Link WiFi, a debug probe with WiFi interface. Communicates at high speed (up to 15MHz) with supported target CPUs. Need a wireless debug interface? Then J-Link WiFi is the perfect solution – for example if the target is moving or needs to be shielded from the environment. Powered by USB, it can easily connect to the same source of power as the target device. J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. With over 500,000 J-Link shipped so far, it is probably the most popular debug probe for ARM cores and the de-facto standard. Further advantagesJ-Link WiFi includes a web interface making for easy TCP/IP configuration (built-in webserver). There are also integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI, and J-Flash. It additionally provides J-Link debugging for mobile applications as well as built-in VCOM functionality, supporting a broad range of microcontrollers & CPUs.Package content J-Link WiFi debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Link PLUS, a high-speed JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, communicates at high speed with supported target CPUs. Supports a large number of CPU cores and microcontrollers.All major IDEs including Eclipse & GDB-based IDEs support J-Link debug probes. So does SEGGER Embedded Studio. With 500,00 J-Links shipped so far, it is the most popular debug probe for ARM cores and the de-facto standard.Further advantagesJ-Link PLUS has built-in VCOM functionality, with integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI & J-Flash. Direct download into RAM & flash memory is also supported. It is available in two form factors: J-Link PLUS & J-Link PLUS Compact (functions identical). Package content J-Link PLUS debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product infromation, please visit segger.com.

Get the J-Link PLUS Compact debug probe; a compact version of the J-Link PLUS. Mounts securely & unobtrusively into development and end user equipment. Based on 32-bit RISC CPU, it communicates at high speed with supported target CPUs. Thanks to a small size with two mounting holes, it can be placed into existing equipment housings. Space can also be reserved for direct-to-PCB mounting. J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs. More than 500,000 J-Links have been shipped so far, making this probably the most popular debug probe on the market for ARM cores and the de-facto standard.Further advantagesThe J-Link PLUS Compact has a built-in VCOM functionality and integrated licenses for unlimited breakpoints in flash memory, RDI/RDDI, and J-Flash. It supports direct download into RAM and flash memory. It has a broad range of supported microcontrollers and CPUs.Package content J-Link PLUS Compact debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, please visit segger.com.

Get the J-Link BASE – the BASE version of the market leading J-Link debug probe family. The top models of the J-Link family are J-Link Pro PoE, J-Link Pro, ULTRA+ & PLUS. The J-Link Base is the perfect level for the average developer to jump into the wide world of J-Link. It offers a respectable download speed of 1 MB/s. It is powered by USB, and supports a wide range of CPU cores and microcontrollers. Known for its reliability and speed, it is used worldwide for firmware development.J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs,  and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.Further advantagesJ-Link BASE has built-in VCOM functionality. It is also available in a compact version: the J-Link BASE Compact.Including all models, more than 500,000 J-Links have been shipped so far, making J-Link probably the most popular debug probe for ARM cores and the de-facto standard. Package content J-Link Base debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Link BASE Compact – the BASE version of the market leading J-Link debug probe family. The top models of the J-Link family are J-Link Pro PoE, J-Link Pro, ULTRA+ & PLUS. The J-Link BASE Compact is designed to mount securely and unobtrusively into development or end user equipment. Small in size and with two mounting holes, this means J-Link BASE Compact can be placed into existing equipment housings or reserve space for direct-to-PCB mounting.The J-Link Base is the perfect level for the average developer to jump into the wide world of J-Link. It offers a respectable download speed of 1 MB/s. It is powered by USB, and supports a wide range of CPU cores and microcontrollers. Known for its reliability and speed, it is used worldwide for firmware development.J-Link debug probes are supported by all major IDEs. These include GDB-based IDEs, Visual Studio Code and SEGGER Embedded Studio. Take a look here to view the complete list of Supported IDEs.J-Link BASE is also available in the classic form factor. Including all models, more than 500,000 J-Links have been shipped so far, making J-Link probably the most popular debug probe for ARM cores and the de-facto standard.Further advantagesJ-Link BASE Compact has built-in VCOM functionality.J-Link BASE is available in two form factors with identical function: J-Link BASE and J-Link BASE Compact.Package content J-Link BASE Compact debug probe USB cable .1" 20-pin ribbon cable (18 cm) Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Trace PRO, the superspeed trace probe that is designed to support the advanced tracing features of all popular cores and architectures. With its superspeed USB 3.0 interface, J-Trace PRO enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code. With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for Cortex-M, Cortex-R, Cortex-A, and RISC-V devices, 64 MB on-board trace buffer Up to 4.0 MB/s download speedThe J-Trace PRO software package includes: J-Flash / J-Flash SPI J-Link Unlimited Flash Breakpoints Ozone - The J-Link Debugger Monitor mode J-Link ARM RDI / RDDI Package content Cortex-M Trace Reference Board .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Micro USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.For additional product information, pleace visit segger.com.

Get the J-Trace PRO Cortex, the superspeed trace probe that provides support for Cortex-A/R/M-based microcontrollers and microprocessors. With its superspeed USB 3.0 interface, J-Trace PRO Cortex enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state. SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for RISC-V devices, 64 MB on-board trace buffer. Up to 4.0 MB/s download speed Includes: Streaming trace probe with USB Superspeed interface Real-time streaming at full system clock Tune your application with live profiling Satisfy regulatory requirements with instruction-level code coverage Isolate and Identify hard-to-find code defects with unlimited trace Supports streaming trace Supports Cortex-A/R/M targets Full J-Link debug functionality Further advantagesIt also supports extended trace features, such as code coverage (so engineers have visibility over which parts of the application code have been executed) and execution profiling (providing visibility as to which instructions have been executed and how often—so hotspots can be addressed and optimization opportunities identified).Package content J-Trace PRO trace probe Cortex-M Trace Reference Board .05" 20-pin debug & trace cable .1" 20-pin ribbon cable (18 cm) USB 3.0 cable Mini USB cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get the J-Trace PRO for Cortex-M, the leading trace probe that is setting a new standard for trace probes. Thanks to its advanced capabilities, it enables continuous streaming trace and lifts the limitations by internal buffers, slowing data transmission to provide those valuable insights that let developer optimize code.J-Trace PRO captures complete trace over long periods, allowing the recording of bugs that are infrequent and hard to reproduce. This is especially helpful when the program flow “runs off the rails” and stops in a fault state.Up to 4.0 MB/s download speed Further advantagesThe J-Trace PRO Cortex-M supports extended trace features: Code coverage (visibility over which parts of the code have been executed) and execution profiling (visibility as to which instructions have been executed & how often). Package content J-Trace PRO trace probe Cortex-M Trace Reference Board .05" 20-pin debug & trace cable 1" 20-pin ribbon cable (18 cm) Mini USB cable USB 3.0 cable Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER's Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible. For additional product information, please visit segger.com.

Get emPower, the Software Evaluation Board from SEGGER, helping developers to accelerate the start of any project. This evaluation board supports SEGGER’s real-time operating system (RTOS), embOS. Other supported software components include the emWeb web server and SEGGER’s emWin graphics library. emPower has a 1.8" LCD module (resolution 160x128) and a display adapter connector (5 V/3.3 V, SPI, PWM for backlight control). It also includes a high-speed B-type USB connector and a full speed USB host.Other detailsemPower comes with J-Link OB, an on-board version of SEGGER’s market-leading debug probe, J-Link. A full overview of specifications can be found in the emPower data sheet. Package Content emPower Eval Board Display Add-on Micro USB cable For additional product information, please visit segger.com.

Get the emPower Zynq Evaluation Board from SEGGER, helping developers evaluate software.emPower Zynq supports SEGGER’s integrated development environment (IDE), real-time operating system (RTOS), embOS. Also supported is emCompress, emCrypt, emFile, emModbus and emNet. A full list of included features can be found here.Other detailsThe emPower Zynq Evaluation Board from SEGGER includes 1Gbps Ethernet, an SD Card interface and an external debug interface (19-pin Cortex-M) including trace. There is support for Xilinx USB platform cable. emPower Zynq also comes with J-Link OB, the evaluation version of SEGGER’s J-Link debug probe. Package content emPower Zynq Eval Board 2 x micro USB cable For additional product information, please visit segger.com.

Get emPower-USB-Host+, a low-cost evaluation board for embedded applications. With a simple design, it supports SEGGER’s software such as the emUSB-Host, the emLoad bootloader and the real-time operating system (RTOS), embOS – all ready-to-run.Developers can easily update the emPower USB-Host+ Board’s firmware by storing the binary of self-written software on a USB memory stick. This comes ready-to-run.There is a collection of samples for the emPower USB-Host+ Board available. These can be seen on the emUSB-Host samples page. Developers can use this hardware as a blueprint for their own devices using two USB-Host ports. The schematics of the board are available for that purpose. To access the board via debug probe, it is equipped with a J-Link OB. Other detailsemPower-USB-Host+ Board is connected by a micro USB connector to a USB port or charger. The emLoad bootloader will then program the image onto the board. Each demo pack comes with firmware images ready to be programmed into the board. It can also be debugged by Embedded Studio and the J-Link OB. Package content emPower USB-Host+ Board Micro USB cable For additional product information, please visit segger.com.

Get emPower-USB-Host+, a low-cost evaluation board for embedded applications. With a simple design, it supports SEGGER’s software such as the emUSB-Host, the emLoad bootloader and the real-time operating system (RTOS), embOS – all ready-to-run.Developers can easily update the emPower USB-Host+ Board’s firmware by storing the binary of self-written software on a USB memory stick. This comes ready-to-run.There is a collection of samples for the emPower USB-Host+ Board available. These can be seen on the emUSB-Host samples page. Developers can use this hardware as a blueprint for their own devices using two USB-Host ports. The schematics of the board are available for that purpose. To access the board via debug probe, it is equipped with a J-Link OB. Other detailsemPower-USB-Host+ Board is connected by a micro USB connector to a USB port or charger. The emLoad bootloader will then program the image onto the board. Each demo pack comes with firmware images ready to be programmed into the board. It can also be debugged by Embedded Studio and the J-Link OB. Package content emPower USB-Host+ Board Micro USB cable For additional product information, please visit segger.com.

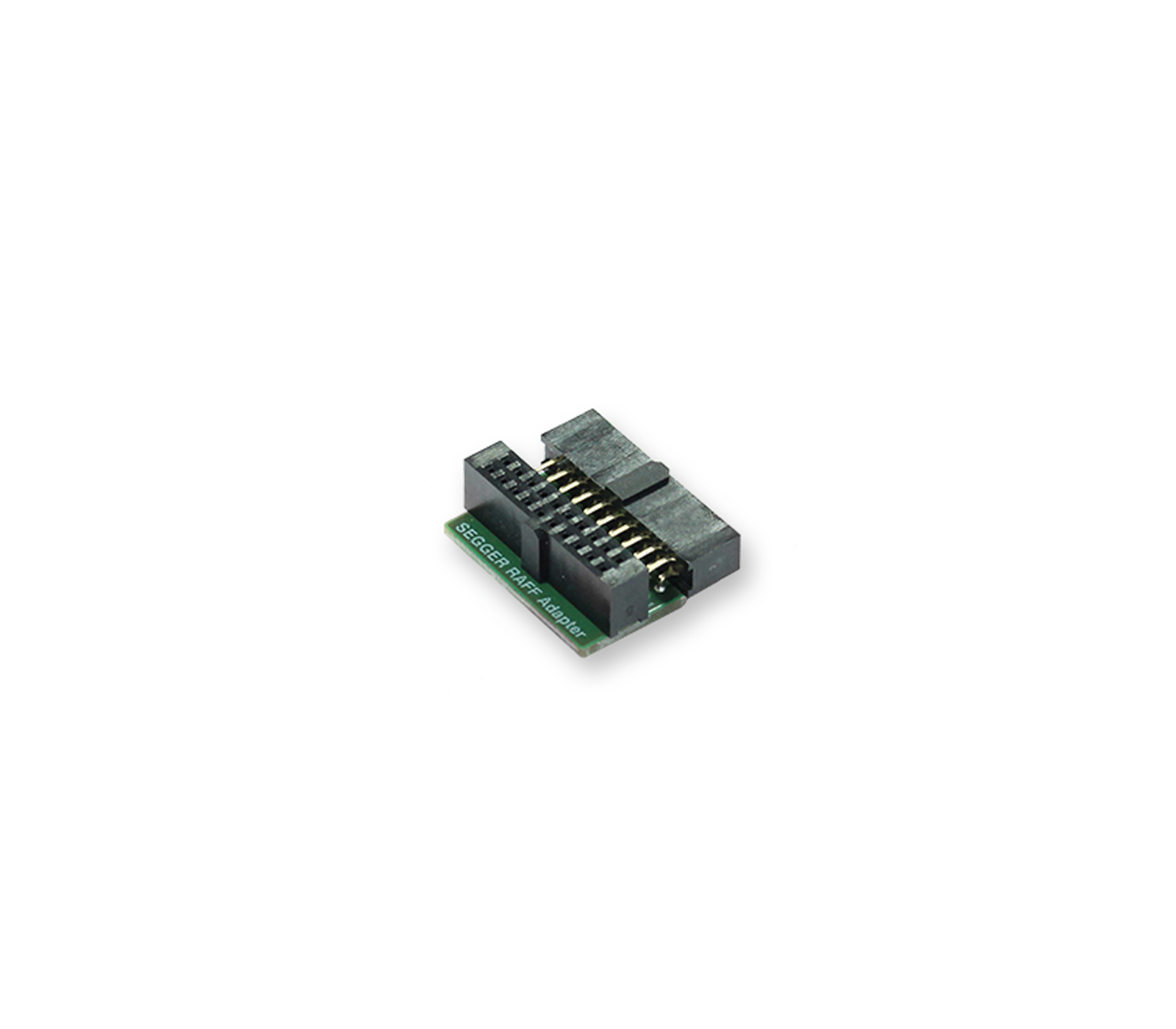

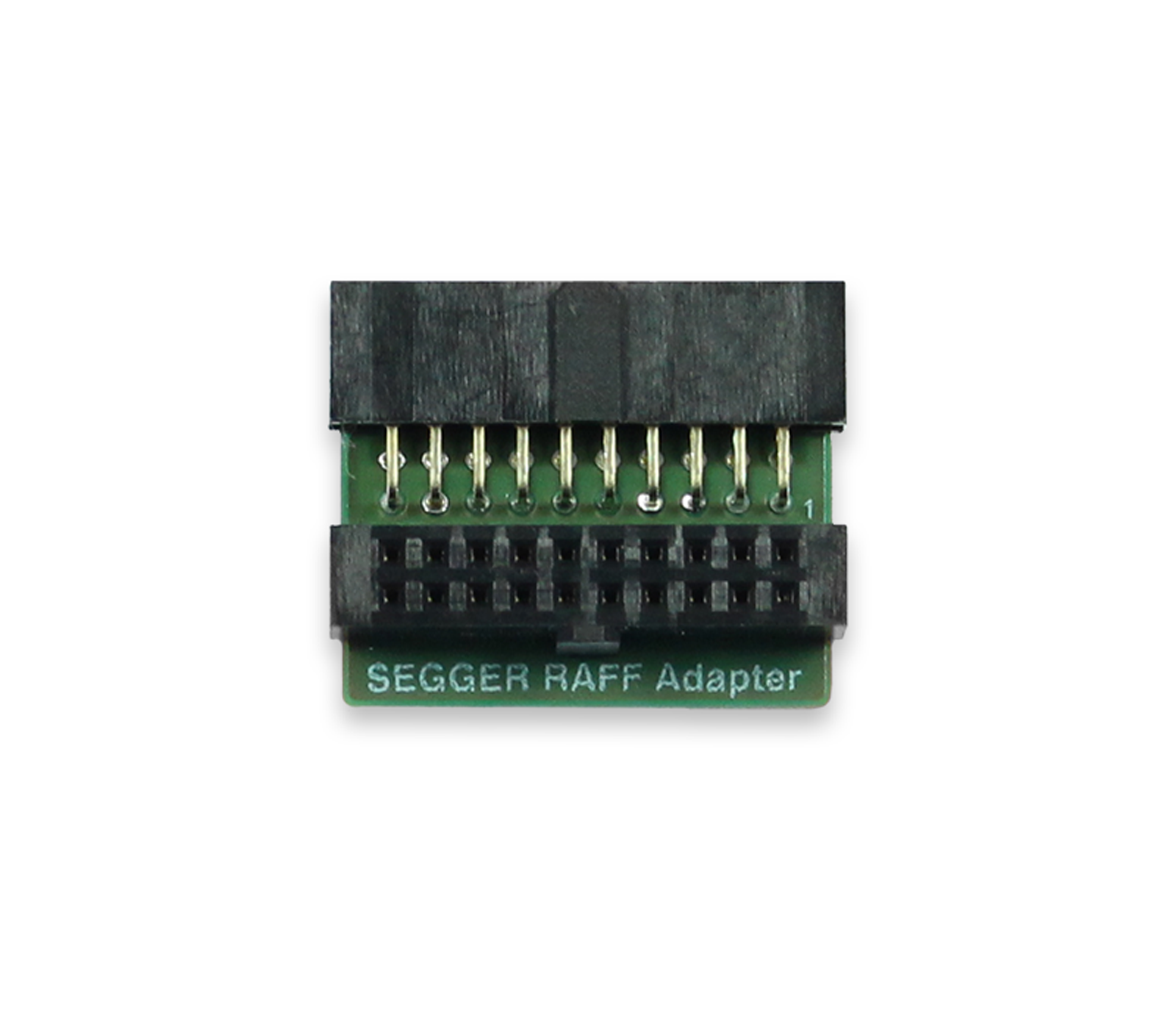

The RAFF Adapter is a Right Angle Female to Female adapter. It is a 1:1 adapter and therefor does not change the pinout and can be used as a replacement of the standard IDC ribbon cable. A compact debug or programming solution can be achieved with a J-Link Compact or Flasher Compact and the RAFF adapter plugged into a straight/vertical PCB pin header on the target application board.For additional product information, please visit segger.com.

SWD-ARM connector to provide electrical isolationFor additional product information, please visit segger.com.

JTAG-ARM connector to provide electrical isolation.For additional product information, please visit segger.com.

Standard .05" 19-pin Cortex-M connector to provide electrical isolation.For additional product information, please visit segger.com.
